DevOps

Publish at: 05 Feb 2021

With all the pieces of the application at hand, we are ready to lay out the CI/CD pipeline architecture.

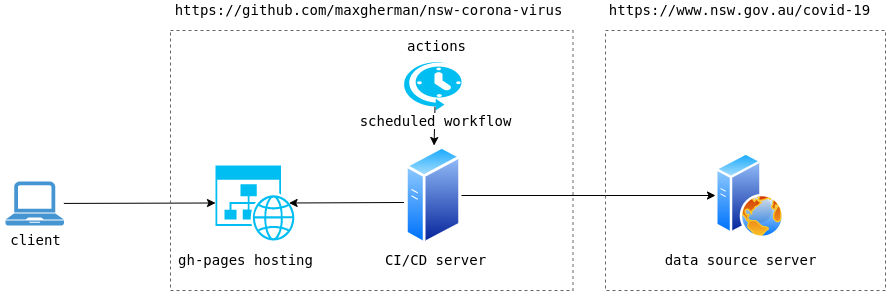

Pipeline

Hosting #

For the simplicity of usage and zero‑payment service, we are using GitHub Pages^[1]. According to the service, we need to specify a branch that will hold the compiled application. The rest is taken care of for us (excluding custom domain, more on this later). Since the master branch is already used by the application source code itself, we can use a second option — the gh-pages branch.

Deployment #

Manual deployment process looks simple.

Data files are downloaded from the public data source
Data files are saved into the public folder
The application is built into the build folder that is excluded from source control tracking
Application source code is cloned into a separate folder from remote (gh-pages branch only)
public folder content from original application source folder is copied to the new clone
Commit and push of the gh-pages branch to remote is executed

Unfortunately this process would work only once. Next time, when we execute the same sequence of steps, previously saved data source would be overridden. At the second step, when we save downloaded data to the public folder, we are not taking care of previously saved information.

So the new/fixed process looks like this:

Download data files
Download previously saved data files (from github using raw.githubusercontent.com server)
Merge new data files into old data files
Save merged data into the public folder
Build the application
Clone gh-pages branch from remote
Copy public folder contents into gh-pages clone
Commit and push

Actions #

Besides hosting, GitHub will help us automate the deployment process as well. It provides a feature that does exactly what we are looking for — automating the workflow described by the deployment steps. This feature is called Actions^[2] and is turned on automatically when repository source code contains a specific execution script with all the steps.

It is possible to automate all the steps we need as is, but for the gh-pages branch deployment we are going to use an existing step built by somebody else^[3] (there is no need to reinvent the wheel). Different actions can be imported into the workflow from different repositories for the purpose of reusability. We are taking advantage of this option as well.

Here is how our actions look in the workflow:

Check out source code #

Checking out source code is a built‑in action; we just need to use it

- uses: actions/checkout@v2

Set up Node.js environment #

The Node.js step is also built‑in but requires extra configuration to specify the exact version of Node to be used

strategy:
  matrix:
    node-version: [14.x]

...

- name: Use Node.js ${{ matrix.node-version }}
- uses: actions/setup-node@v1
  with:
    node-version: ${{ matrix.node-version }}

Load data #

Next is a custom action that represents a JavaScript file executed for a particular step. In our case, it's a file that is part of source control. It loads, merges, and saves data.

- uses: ./.github/actions/load-data

Install dependencies #

After data is saved, we have to prepare the source code for compilation by installing necessary third‑party dependencies.

- name: Install
  run: npm ci

Build #

While building the application we need to provide all the required environment variables. Variables that should not be exposed to the public are taken from GitHub secrets^[4].

- name: Build
  run: npm run build --if-present
  env:
    REACT_APP_MAP_TOKEN: ${{ secrets.MAPBOX_KEY }}
    REACT_APP_DATA_URL: .
    REACT_APP_GITHUB_URL: https://github.com/maxgherman/nsw-coronavirus

Deploy #

Deployment itself represents an invocation of the action we exported into the workflow previously

- name: Deploy
  uses: peaceiris/actions-gh-pages@v3
  with:
    deploy_key: ${{ secrets.GH_PAGES_DEPLOY_KEY }}
    publish_dir: ./build
    publish_branch: gh-pages
    cname: nsw-coronavirus.js.org

Custom domain #

By default, GitHub Pages provides publishing under the github.io domain^[5]. The final URL includes the username and repository name

GitHub hosting URL for user repositories: http(s)://user.github.io/repository

Specifying a custom domain requires a few more details. As you might have noticed, the previous step has one of the parameters called cname. This parameter instructs the step action to create a file called CNAME at the root of the repo with one single line nsw-coronavirus.js.org. Essentially, this file represents a CNAME record^[6] that links one DNS entry to another so that requests to nsw-coronavirus.js.org are resolved by http(s)://user.github.io/repository. Finally, we need to instruct js.org DNS servers about the linking between js.org and github.io. There is a project that does just that for free. The only thing we need is to create a pull request following the provided instructions^[7].
